Spectroscopy Index

Astronomical spectroscopy is measuring the object's electromagnetic radiation spectrum.

Spectrum

Presentations

Astronomical Spectroscopy Equipment

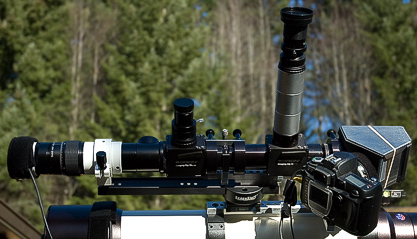

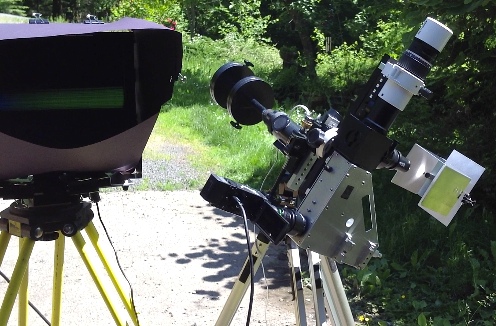

Versatile Low Resolution Spectrograph On a C5 Part 1 On a C5 Part 2 Bench Testing with F4T5D Light Spectra L200 Spectrograph     Sun spectrum with L200 L200 Slit and Mirror Optical Alignment Spectra L200 Spectrograph Bench Testing L200 Bench Test with F4T5D Light L200 Spectrograph Higher Orders Overlap Tests with F4T5D Light   38 Degrees Astronomical Spectrograph with 600 lines/mm or 1200 lines/mm grating and Nikon D70 DSLR.

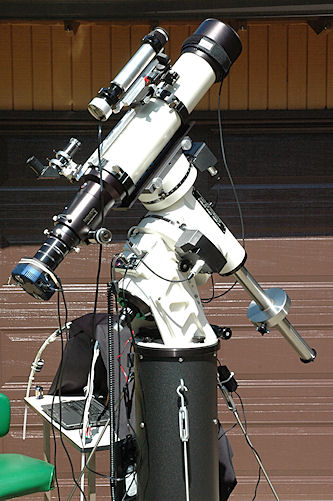

Rainbow Optics Visual, Photo and CCD Star Spectroscope mounted in the QSI 532ws-M1 filter wheel. QSI 532ws-M1 CCD Camera, Orion Argonaut™ 150mm Maksutov-Cassegrain telescope and Astro-Physics Mach1 German Equatorial Mount   Rainbow Optics Visual, Photo and CCD Star Spectroscope mounted in the QSI 532ws-M1 filter wheel. QSI 532ws-M1 CCD Camera, Tele Vue NP127is Refractor and Astro-Physics 1200GTO German Equatorial Mount   Screwdriver CD Spectroscope   Simple Sewing Needle Sun Spectroscope   Vixen Sewing Needle Spectroscope     The Sun light enters the side of T-tube and reflects off the sewing needle. The reflection looks like a narrow slit. The sewing needle is at the focal plane of the 70 mm refractor. The refractor is the collimation lens. The light travels up the refractor back wards and is transformed into a parallel beam after the 70 mm objective. The parallel beam goes through the plastic 500 lines/mm grating that is mounted on the Sony Handycam 37 mm filter threads. The grating disperses the parallel beam into a spectrum. The Sony Handycam records the spectrum and it has a HDMI output for real time viewing of the spectrum. Spectroscopy
