Mars 2003/6/7

The above image is 2X full Nikon Coolpix 990 Digital camera resolution, image processed and cropped. Images were taken through clouds, but seeing was above average.

Mars Information

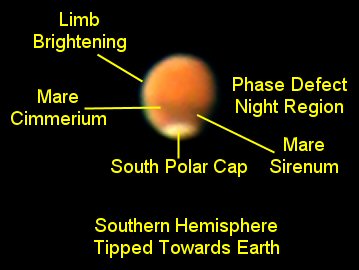

The white south pole is tipped towards us. The darker regions above the south polar cap are albedo features of Mare Sirenum and Mare Cimmerium. We are seeing the night region after sunset on the right side of Mars. Limb brightening is caused by scattered light from dust and dry-ice particles high in the Martian atmosphere.

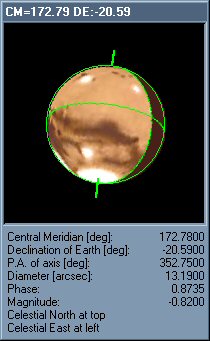

• Phase: 87.345%

• Apparent magnitude: -0.83

• Longitude of central meridian: 172.53 degrees

• Apparent angular diameter: 13.20"e;

• Azm: 153°32'52" Alt: +24°30'07" (with refraction: +24°32'16")


Nikon Coolpix 990 Photo Information
DSCN9217.JPG to DSCN9253.JPG 25 images stacked out of 37 taken
CAMERA : E990V1.1
METERING : CENTER
MODE : M
SHUTTER : 1/15sec
APERTURE : F4.0
EXP +/- : 0.0
FOCAL LENGTH : f23.4mm(X1.0)
IMG ADJUST : STANDARD
SENSITIVITY : ISO100
WHITEBAL : SUNNY
SHARPNESS : HIGH
DATE : 2003.06.07 04:22 to 04:26 PDT
DATE : 2003.06.07 11:22 to 11:26 UT
QUALITY : FULL FINE


Imaging Equipment

• Telescope: Orion Argonaut™ 150mm Maksutov-Cassegrain telescope, f/12 focal ratio, 1800mm focal length
• Camera: Nikon Coolpix 990 Digital Camera afocal coupled to the eyepice
• Eyepiece: ScopeTronix, Inc. STWA18 Wide Angle 18mm Eyepiece/Adapter
• Focuser: JMI NGF-S Motofocus with DRO (Digital Read Out)
• Telescope Mount: Orion EQ-3 mount with EQ-3M dual-axis DC motor drive

Imaging Processing

• JASC Inc. Paint Shop Pro Version 8.00, batch crop and convert to BMP
• Cor Berrevoets Registax Version 1.1, align, select, stack and process multiple images
• JASC Inc. Paint Shop Pro Version 8.00, unsharp mask, final crop and convert to JPG
