The Sun radio emission burst was observed with these instruments.

Tektronix MDO4104-6 Spectrum Analyzer Video
Tektronix MDO4104-6 Spectrum Analyzer

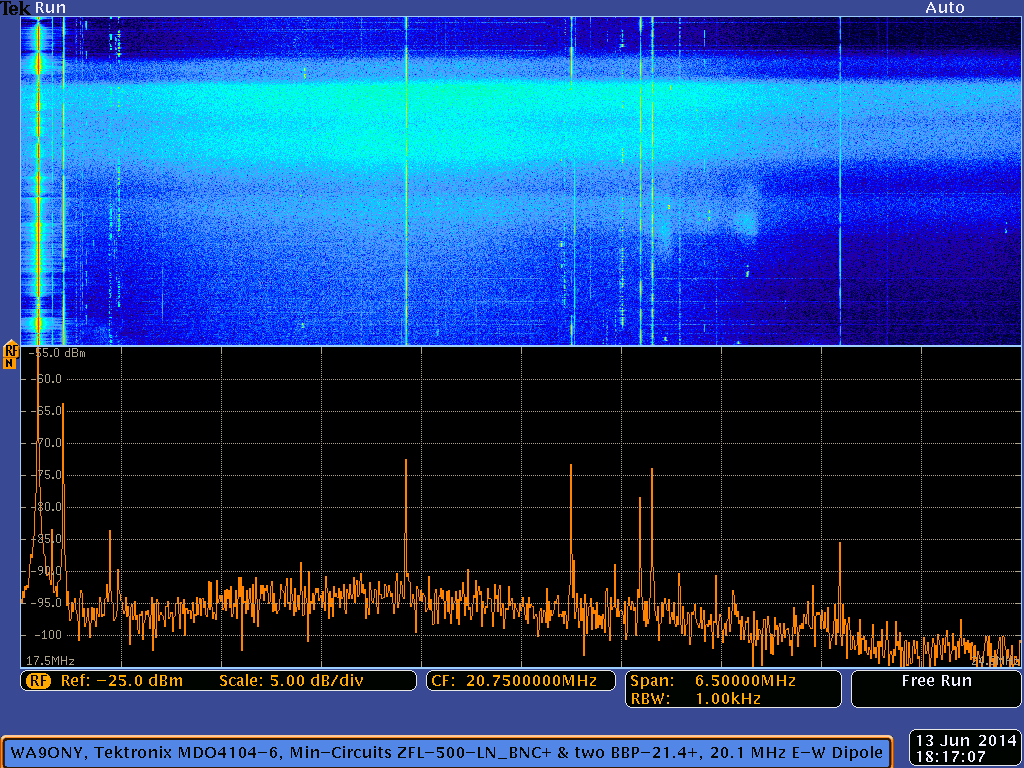

- The below Tektronix MDO4104-6 spectrum analyzer display shows the Sun radio emissions from 17.5 MHz to 24.0 MHz.
- The Sun radio emission is the large, broad, light blueish color in the top blue spectrogram window.
- Radio stations
- The first set of strong vertical signals from the left edge are the 17.5 MHz to 17.9 MHz broadcasting stations.
- The second set of strong signals from the left edge are the
17 meter (18.068 MHz to 18.168 MHz) amateur radio band.
- Radio station WWV at 20.0 MHz
is the white vertical line in the spectrogram just over one division left of center.
- WWV distance is 1,511 km with a bearing of 105.3 degrees.
- The strong set of signals just right of the center frequency is the
15 meter
(21.0 MHz to 21.45 MHz) amateur radio band.
- The short thin horizontal lines in the spectrogram are weak lighting or weak RFI bursts.
- The antenna sensitivity peaks on the left side of the spectrogram.
- This results in the background noise being a lighter blue color on the left side of the spectrogram.

United States Frequency Allocations

Sun Location

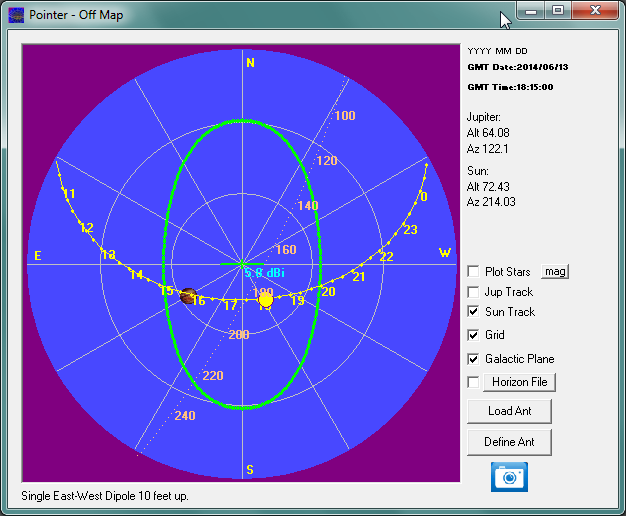

The Sun was 72.43 degrees above the horizon when the solar radio emission occurred.
Tektronix MDO4104-6 Spectrum Analyzer Settings
- Spectrum analyzer is the bottom window
- 17.5 MHz start frequency
- 20.75 MHz center frequency
- 24.0 MHz stop frequency
- 6.5 MHz frequency span
- 6.5 MHz capture bandwidth
- 1 kHz resolution bandwidth
- 650 kHz per horizontal division
- 5 dBm per vertical division
- Spectrogram (waterfall) is the top window
- Spectrogram bottom is the current spectrum trace shown at the bottom of the display.
- Spectrogram top is the oldest spectrum, approximately 1 minute and 45 seconds after the current spectrum trace at the bottom.
- 328 spectrums in the spectrogram.
- 0.32 seconds per spectrum update rate.
- 3.12 spectrums per second update rate.
- Date and time in lower right corner is in UT.
- Python 2.7.6 script taking screen captures every 12 seconds
|
Spectrum Analyzer Equipment

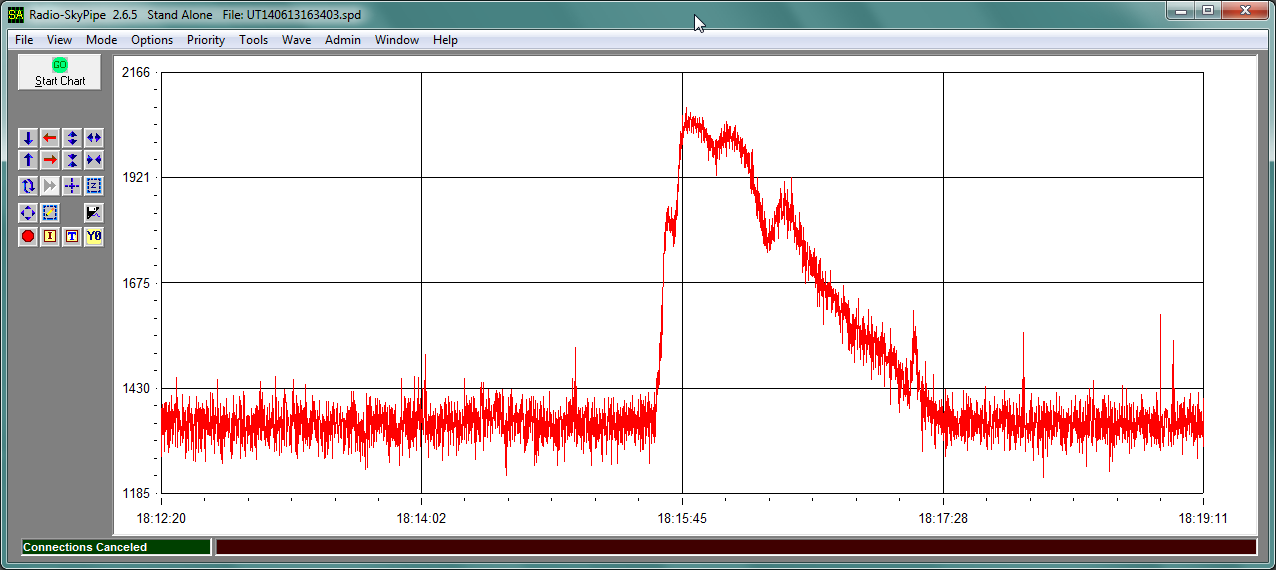

Icom IC-R75 Radio Receiver Strip Chart
- Icom IC-R75 radio receiver with Radio-SkyPipe II strip chart recorder
- Radio emission has a rapid onset and slower decay, the burst looks like a shark fin.

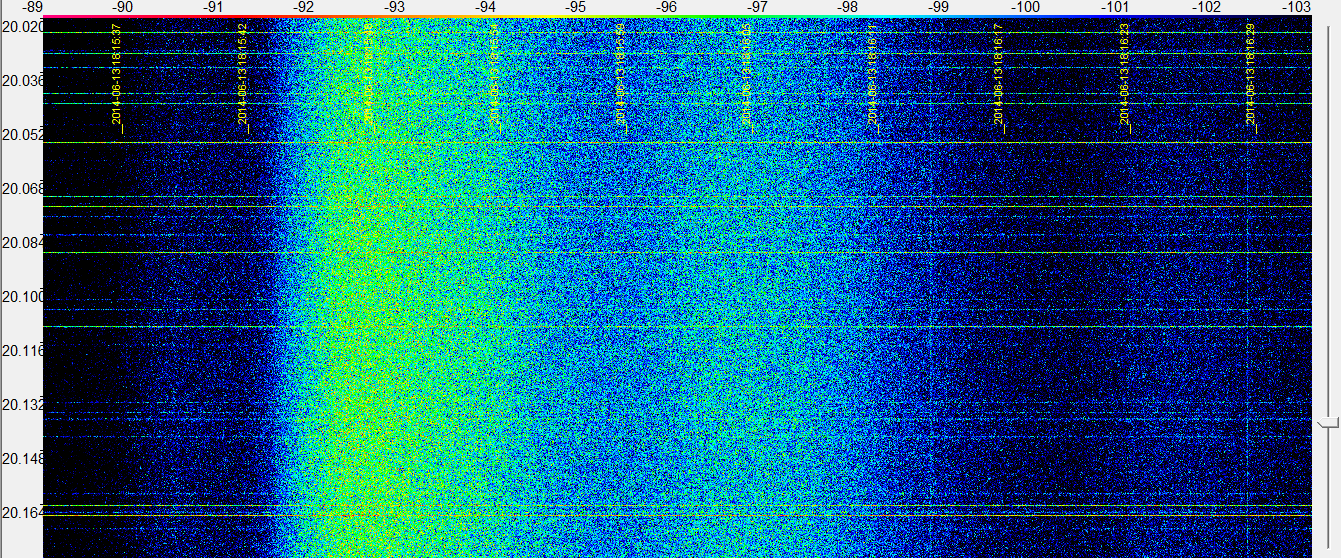

- Compare the spectrogram with the Icom IC-R75 strip chart.
- Radio emission has a rapid onset and slower decay, the burst looks like a shark fin.
- Multiple plateaus on trailing edge
Radio Equipment
- Icom
IC-R75
- 20.1MHz
- LSB
- AGC off
- Preamp 2 on
- Behringer
XENYX 302USB 5-Input Mixer with XENYX Mic Preamp and USB/Audio Interface
- The HP laptop does not have a line input, only mic input.
- XENYX 302USB takes the IC-R75 back recorder jack [REC] signal and digitizing it.
- The XENYX 302USB has its own Line gain control.
- The XENYX 302USB has its own headphone gain control.
- MFJ Enterprises
MFJ-1040C Preselector
- Radiowavz
15-DP11 15M dipole antenna with 1:1 Balum
Software

SDR-IQ Receiver Video
RFSpace
SDR-IQ Receiver

RTL-SDR Receiver Video
RTL-SDR Receiver

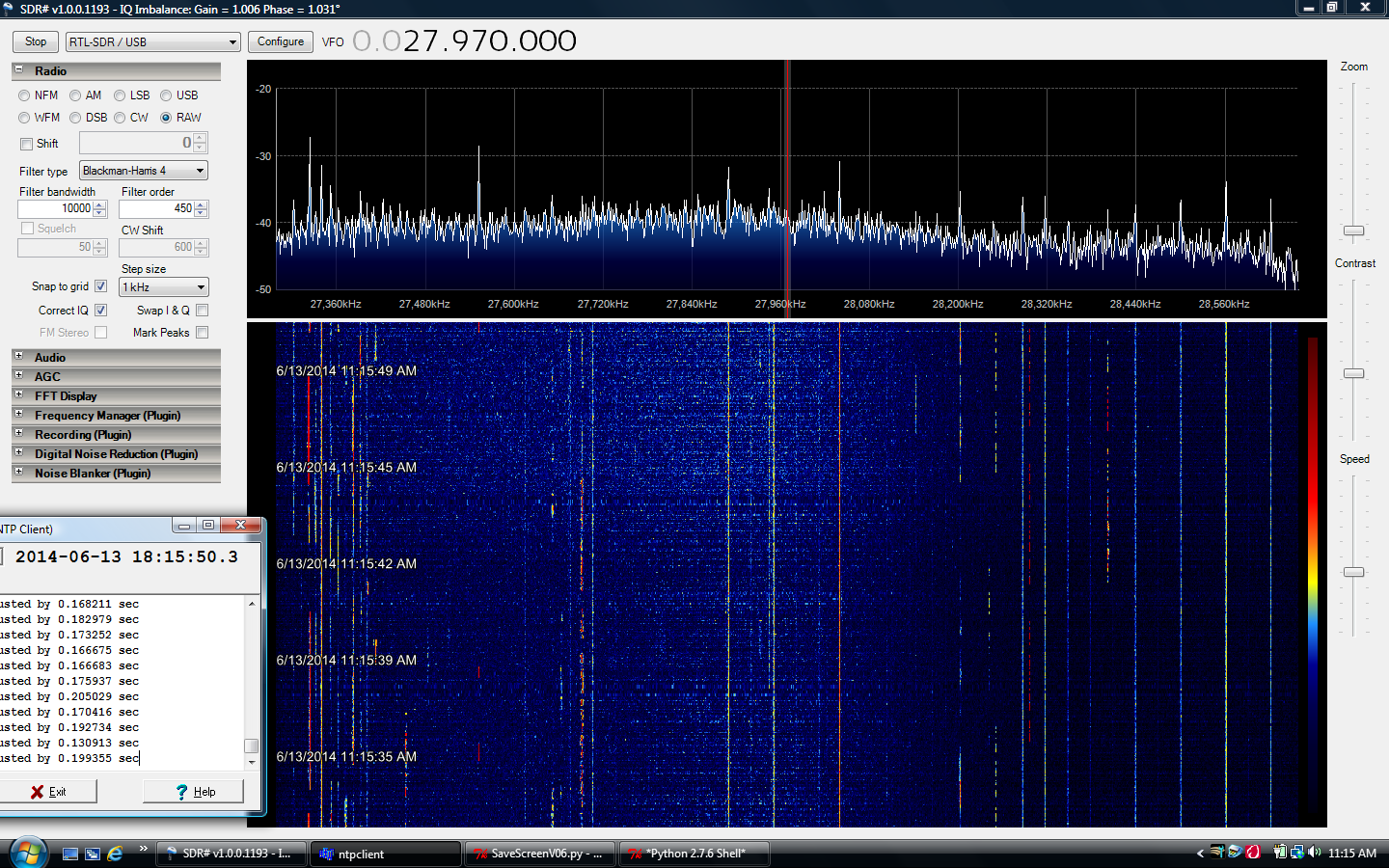

- Below is SDR# spectrum analyzer display showing the Sun radio emissions from approximately 26.240 MHz to 28.680 MHz.
- The Sun radio emission is the broad white noise in the top half of the spectrogram window.
- Spectrogram top is the current spectrum trace shown in the top window.
- Spectrogram bottom is the oldest spectrum, approximately 17 seconds after the current spectrum trace at the top.
- 3 to 4 seconds between spectrogram vertical time stamps
- The signals on the left side are the
Citizens band radio (CB radio) (26.965 MHz to 27.405 MHz).
- The signals on the right are the
10 meter
(28.0 MHz to 29.7 MHz) amateur radio band.

United States Frequency Allocations

The Radio Spectrum, October 2003
U.S. DEPARTMENT OF COMMERCE
National Telecommunications and Information Administration

|
Hardware Equipment
- Radio: NooElec NESDR Mini SDR & DVB-T USB Stick (R820T) based on the Realtek RTL2832U and the Raphael Micro R820T
- A preselector is used to remove the strong stations from overloading the SDR.
- Antenna: Scanner Ant-Base 30-1300 Mhz by Antennacraft, includes 50 feet of RG-6
- Laptop: HP G70 NOtebook PC, Pentium Dual Core CPU, T4200 @ 2.00 GHz, 3 GB RAM, 32-bit
- Data logging to Toshiba 2TB USB hard drive

Software
- SDR# V1.0.0.1193
- Less than 26.951 MHz start frequency
- 28 MHz center frequency
- More than 29.051 MHz stop frequency
- 2.4 MHz frequency span
- 2.4 MHz capture bandwidth
- ACG off
- RF Gain 33.8 dB
- Blackman-Harris 4 FFT window, resolution 32,768
- Python 2.7.6 and
Python Imaging Library (PIL V1.1.7) script taking screen captures every 5 seconds
- Ridiculously Simple NTP Client by Wolfgang "Wolf" DL4YHF for time keeping
- Microsoft Windows Vista Home Premium, Service Pack 2

Observing Information
- OBS-Time: June 13, 2014, 1815 UT
- OBS-Location: Camas, WA USA, 16.6 miles East-North-East from the center of Portland, OR, USA

Radio JOVE Data Archive Calendar

Verifying Solar Burst
NOAA/ National Weather Service
National Centers for Environmental Prediction
Space Weather Prediction Center
Solar Event Reports (Edited Events)
gt:Product: 20140613events.txt
