SPECTROSCOPY INDEX -

Pleiades M45 Stars Spectra

Large image with north at top	Large spectra image with labels and north at bottom
M45 Stars Spectra Summary Table Star Spectrum Graphs SIMBAD Spectral Type HD or HIP Spectral Type HD 23156 A7V C ~ A5 HD 23194 A5V C ~ A2 HD 23246 A8V C ~ A5 HD 23325 Am C ~ A0 HD 23361 A3V C ~ A3 HD 23387 A1V C ~ B9 HD 23409 A2V C ~ A0 HD 23463 K2 D ~ K2 HD 23479 A7V C ~ A3 HD 23489 A2V C ~ A0 HD 23585 F0V C ~ A2 HD 23607 A7V C ~ A0 HD 23629 A0V D ~ A0 HD 23631 A2V C ~ B9 HD 23643 A3V... C ~ A0	M45 Stars Spectra Summary Table Star Spectrum Graphs SIMBAD Spectral Type HD or HIP Spectral Type HD 23733 A9V C ~ A3 HIP 17489 B7IV C ~ B7IV HIP 17499 B6IIIe C ~ B6III HIP 17531 B6IV C ~ B6V HIP 17573 B8III C ~ B8III HIP 17579 B8V C ~ B8V HIP 17588 A0Vn C ~ A0Vn HIP 17608 B6IVe C ~ F8IV HIP 17664 B9.5V C ~ B9.5V HIP 17684 F5 D ~ F8IV HIP 17692 A1V C ~ A1V HIP 17702 B7III C ~ B7III HIP 17704 A0V ~ ~ A0V HIP 17791 A1V C ~ A1V

Spectral Atlas and Spectral Classification

Spectral Sequence of Stars Color Chart

Bright Star Spectra Index

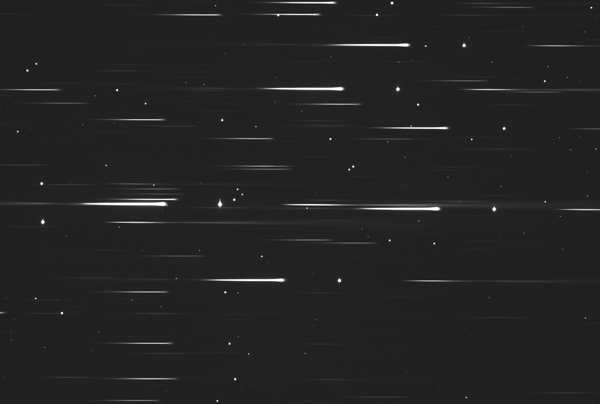

Spectrum Image Information

• The stars are at spectral order zero and the horizontal lines on each side of the star are the spectral orders minus and plus one.
• The spectra at the blazed spectral order minus one is to the left of the star.
• The blazed spectral order minus one is brighter than the spectral order plus one.
• The very bright stars create dim spectral orders plus and minus two which start where spectral orders plus and minus one end.
• Both images north is top and west is right


Monitor Test Pattern

The following test pattern is to help you adjust your monitor to best view the CCD astro images. The test pattern is used for adjusting monitor brightness, and contrast. Adjust monitor brightness and contrast to see all 16 gray scale levels. The most important adjustment when viewing astro images is to see the differences in all of the black bands.
