The Lhires III spectrograph micrometer was adjusted in increments of 0.50 while taking spectrum images of the morning blue sky.
There is about 50% overlap of the images when using micrometer increments of 0.50 and using the Sony NEX-6 camera.
If there is an absorption line in the center of the image then in the previous smaller micrometer setting it will be in the right side of the image and the following larger micrometer setting it will be in the left side of the image.
The short wavelengths are on the left side of the spectrum image and the longer wavelengths are on the right side of the spectrum image.
Micrometer setting 13.0 is the shortest wavelength, larger micrometer settings are the longer wavelengths.
The
Sony NEX-6 camera sensitivity decreases rapidly in the blue short wavelengths and slowly in the red long wavelengths.
The below images are vertically cropped and they are resized 25% of the
full size image.

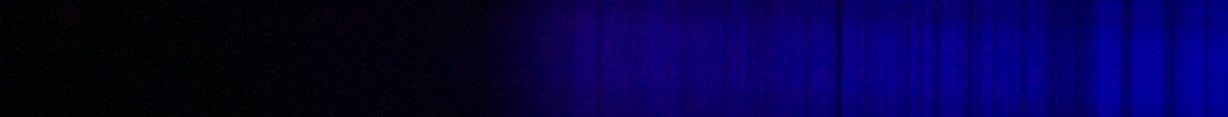

Lhires Micrometer Setting 13.0
- Spectrum span estimate ~423 Angstroms, ~3936 to ~4359 Angstroms
- H gamma 4340.462 Angstroms absorption line at the right edge of the spectrum.
-
Hydrogen
gamma absorption line in the
Balmer series
.
-
Sony NEX-6 camera blue sensitivity cutoff limits the spectrum in the blue short wavelengths and as a result the spectrum image is black on the left side.
Lhires Micrometer Setting 13.5
- Spectrum span estimate ~422 Angstroms, ~4115 to ~4537 Angstroms
- 4340.462 Angstroms absorption line at the center of the spectrum.
-
Hydrogen
gamma absorption line in the
Balmer series
.

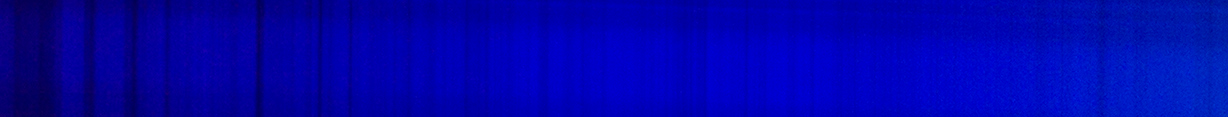

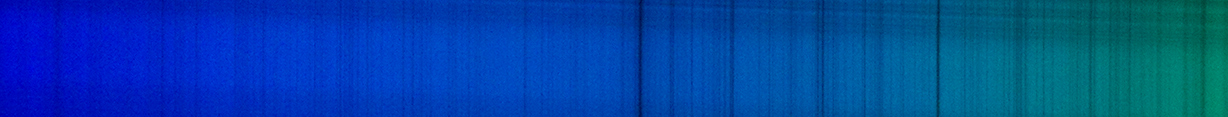

Lhires III Micrometer Setting 14.0
- Spectrum span estimate ~423 Angstroms, ~4290 to ~4713 Angstroms
- 4340.462 Angstroms absorption line at the left edge of the spectrum.
- Hydrogen
gamma absorption line in the
Balmer series
.

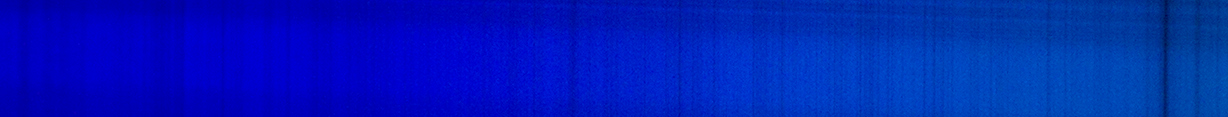

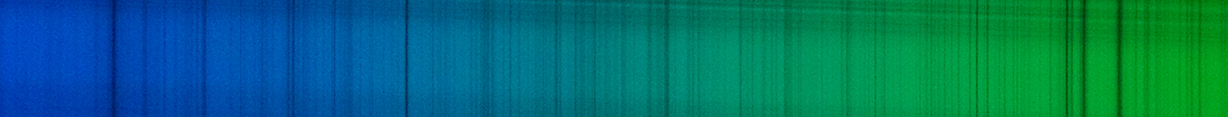

Lhires III Micrometer Setting 14.5
- Spectrum span estimate ~423 Angstroms, ~4452 to ~4875 Angstroms
- Strong Hbeta 4861.3615 Angstroms absorption line ~95% from left edge.
-
Hydrogen
beta absorption line in the
Balmer series.

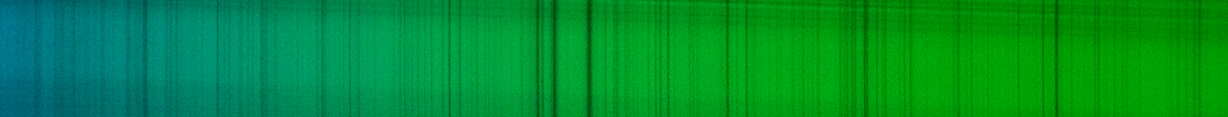

Lhires Micrometer Setting 15.0
- Spectrum span estimate ~423 Angstroms, ~4615 to ~5038 Angstroms,
- Strong Hbeta 4861.3615 Angstroms absorption line ~50% from left edge.
-
Hydrogen
beta absorption line in the
Balmer series.
Lhires III Micrometer Setting 15.5
- Spectrum span estimate ~423 Angstroms, ~4777 to ~5200 Angstroms
- Strong Hbeta 4861.3615 Angstroms absorption line ~15% from left edge.
-
Hydrogen
beta absorption line in the
Balmer series.
Lhires III Micrometer Setting 16.0
- Spectrum span estimate ~423 Angstroms, ~4935 to ~5362 Angstroms
Lhires III Micrometer Setting 16.5
- Spectrum span estimate ~423 Angstroms, ~5102 to ~5525 Angstroms
Lhires III Micrometer Setting 17.0
- Spectrum span estimate ~423 Angstroms, ~5264 to ~5687 Angstroms

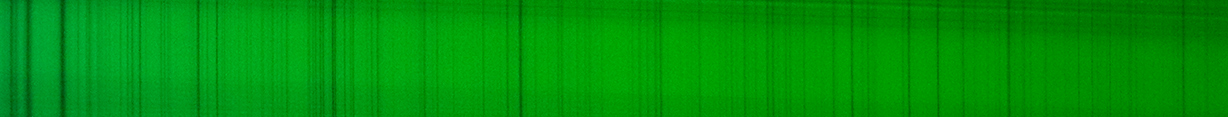

Lhires III Micrometer Setting 17.5
- Spectrum span estimate ~423 Angstroms, ~5426 to ~5849 Angstroms
Lhires III Micrometer Setting 18.0
- Spectrum span estimate ~423 Angstroms, ~5588 to ~6011 Angstroms

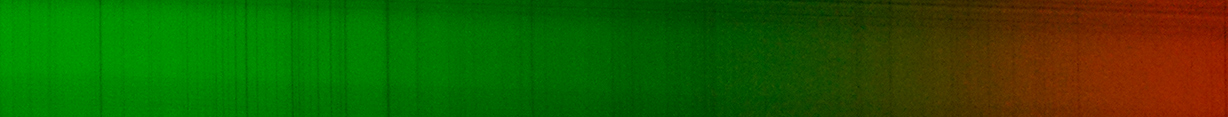

Lhires III Micrometer Setting 18.5
- Spectrum span estimate ~423 Angstroms, ~5751 to ~6164 Angstroms
Lhires III Micrometer Setting 19.0
- Spectrum span estimate ~423 Angstroms, ~5913 to ~6336 Angstroms
Lhires III Micrometer Setting 19.5
- Spectrum span estimate ~423 Angstroms, ~6075 to ~6498 Angstroms

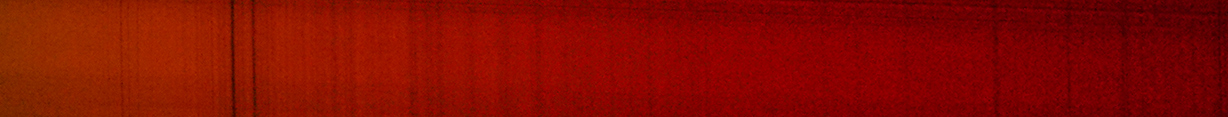

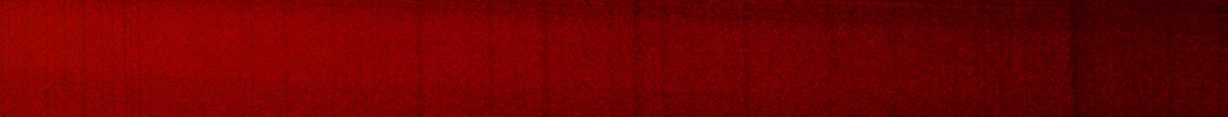

Lhires III Micrometer Setting 20.0
- Spectrum span estimate ~423 Angstroms, ~6238 to ~6661 Angstroms
- Strong Halpha 6562.8518 Angstroms absorption line ~80% from left edge.
-
Hydrogen
alpha
absorpiont line in the
Balmer series.
-
Sony NEX-6 sensitivity decreases in the red long wavelengths caused by the camera's
infrared
filter.

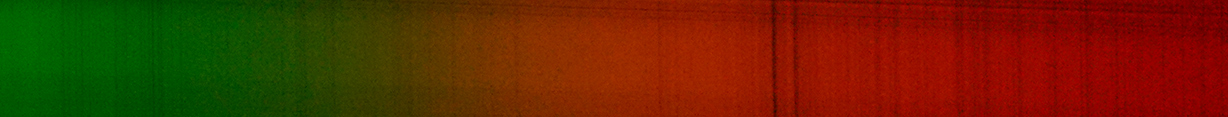

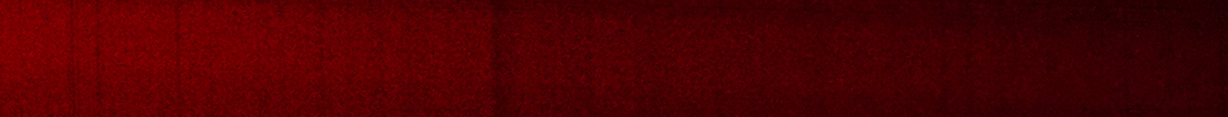

Lhires Micrometer Setting 20.5
- Spectrum span estimate ~423 Angstroms, ~6400 to ~6823 Angstroms
- Strong Halpha 6562.8518 Angstroms absorption line ~40% from left edge.
-
Hydrogen
alpha
absorpiont line in the
Balmer series.
-
Sony NEX-6 sensitivity decreases in the red long wavelengths caused by the camera's
infrared
filter.
Lhires III Micrometer Setting 21.0
- Spectrum span estimate ~423 Angstroms, ~6562 to ~6985 Angstroms
-
Sony NEX-6 sensitivity decreases in the red long wavelengths caused by the camera's
infrared
filter and as a result the spectrum image is black on the right side.

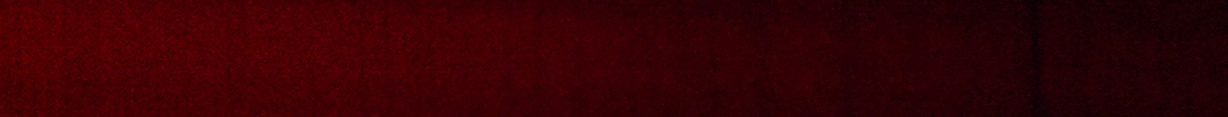

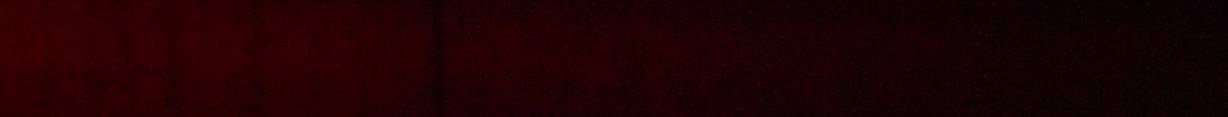

Lhires III Micrometer Setting 21.5
- Spectrum span estimate ~423 Angstroms, ~6725 to ~7148 Angstroms
-
No spectrum image at 2 sec and 6400 ISO.
-
Sony NEX-6 sensitivity decreases in the red long wavelengths caused by the camera's
infrared
filter.

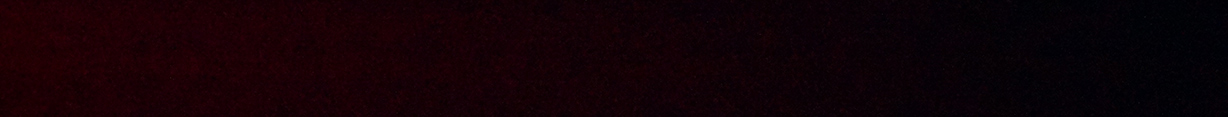

Lhires III Micrometer Setting 22.0
- Spectrum span estimate ~423 Angstroms, ~6887 to ~7310 Angstroms
-
No spectrum image at 2 sec and 6400 ISO.
-
Sony NEX-6 sensitivity decreases in the red long wavelengths caused by the camera's
infrared
filter.
Lhires III Micrometer Setting 22.5
- Spectrum span estimate ~423 Angstroms, ~7049 to ~7472 Angstroms
-
No spectrum image at 2 sec and 6400 ISO.
-
Sony NEX-6 sensitivity decreases in the red long wavelengths caused by the camera's
infrared
filter.
|
