Configuration for Solar Spectrum

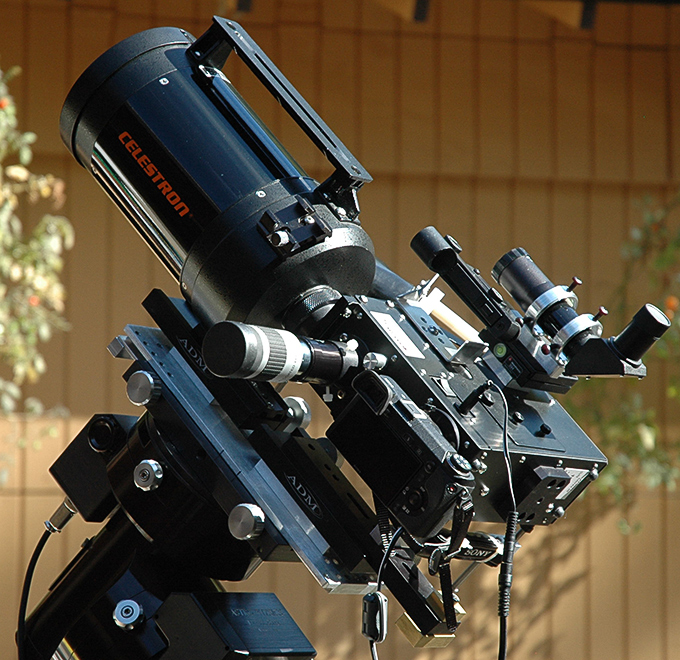

- YouTube Video: Mg Triplet Solar Spectrum - Lhires III, NEX-6 showing the equipment used to take images of the Sun's spectrum.
- Shelyak Instruments Lhires III
- Grating module 2400 gr/mm
- Model#: SE0082 CCD adapter for Lhires III to mount a QSI ccd camera ('ws' front plate) on a Lhires III. Thread: M42x0.75 backfocus: 34.9 mm
- Celestron 25mm eyepiece and 2X Barlow in the guider port
- NOT USED FOR SOLAR IMAGING
- Used for Moon imaging
- Model#: PU0024 Photographic Tripod Adapter
- JMI focus motor to rotate the micrometer for solar videos

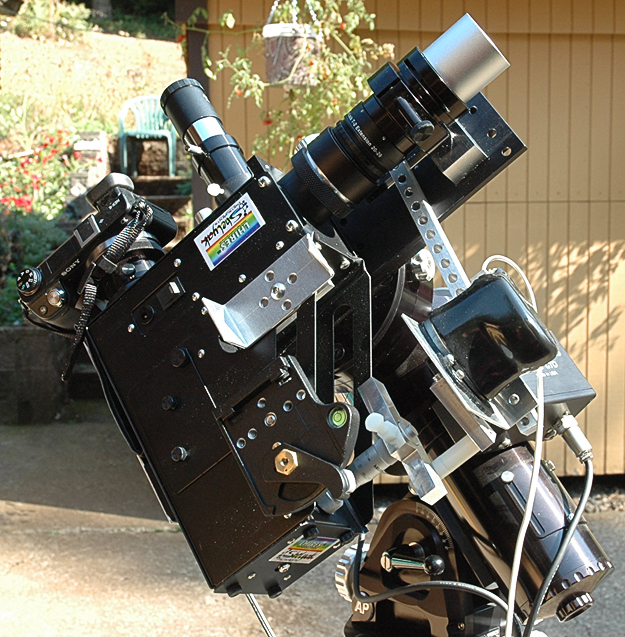

- Optics used with the Lhires III
- Baader T2 Extension Tube - 40mm for lens shade
- Edmund Optics
T-Mount Iris Diaphragm Barrel Stock #52-299 to reduce the Sun light.
- Edmund Optics Achromatic Doublet Lens
40mm Dia. x 160mm FL, MgF2 Coating Stock #32-923
- I happen to have this lens, so I used it. The lens f/4 is too fast for the Lhires III which is designed for f/10 telescope. When the the iris is closed down to 16 mm diameter (f/10) then the optics is a good match for the Lhires III f/10 design. When the iris is less than 16 mm diameter the spectrum resolution will decrease because the grating is not fully illuminated.
- Edmund Optics 10mm T-Mount Extension Tube Stock #52-294
- Baader Varilock T-2 Extension 20-29 mm
- SCT male to T-mount adapter
- Agena AstroProducts Blue Fireball # S-SB SCT Thread Spacer Ring with 1" Extension modified to fit on the Lhires III
- Sony Alpha NEX-6 mirrorless digital camera
- Imaging Sensor : 16.1MP Exmor APS-C HD CMOS sensor (23.5 X 15.6mm)
- Still Image Size 16:9 : L: 4912 x 2760
- Still Image Size 3:2 :4912 x 3264
- Interchangeable Lens Mount Type: Sony E-mount
- Sony E-mount to T adapter
- 5mm T-Mount Extension Tube
- Sun finder
- Astro-Physics Mach1 GoTo mount
|
